Diving into the atari-game playing algorithm - Deep Q-Networks

December 01, 2019

This was a small collaborative research project about the convergence properties of the Deep Q Network for the MSc Reinforcement Learning course at the University of Amsterdam. Written by Leon Lang, Igor Pejic, Simon Passenheim, and Yoni Schirris.

Introduction

Reinforcement Learning (RL), the idea of having an agent learn by directly perceiving its environment and acting to manipulate it, is one of the great branches of Artificial Intelligence. In this blog post you will read about a specific breakthrough by DeepMind: its success in creating a single deep RL architecture that was able to achieve gameplay in Atari games comparable to that of humans across almost all the 4949 games [1]. They called it DQN, which stands for “Deep Q-Network”. When its predecessor was first introduced in 2013 [2], it was, according to the authors, the first system that was able to learn control policies “directly from high-dimensional sensory input using reinforcement learning”.

In the coming sections, we will first study Q-learning, a specific RL algorithm, in its tabular form. Then we will learn how Deep Q-learning makes it in principle possible to apply RL to more complex problems and see the so-called deadly triad, which are three properties that are often present in these problems and lead to divergence. In the section that follows, we will shortly introduce the two main two tricks that DQN utilizes for stability, namely experience replay and a fixed target network. Finally, we answer, through experimentation, how these tricks can overcome the divergence problems that partly come from the deadly triad when evaluating the performance in the OpenAI CartPole gym environment. Concretely, our research questions are:

  • Can we find an environment where DQN diverges without the main two tricks employed in that paper, but converges when including the tricks?
  • What are the individual contributions that come from using experience replay and a fixed target network?

We will answer these questions by investigating the return, i.e. cumulative reward, over time achieved by the agent. We expect that adding both tricks allows the method to converge on the chosen environment, while only using either of the tricks won’t. Additionally, we will look at the phenomenon of “soft divergence”, i.e. unrealistically large Q-values. We hope to shed some light on the effectiveness of these tricks in less complex environments than Atari games, allowing beginners in the field of RL to get an intuition of why DQN works so well, and to think of ways how to improve them even further.

This post assumes some familiarity with RL. If you feel a lack of prior knowledge while reading the post, we can recommend reading parts of the classical introduction into Reinforcement Learning 3 or watching the great (available online) lecture by David Silver, one of the creators of the famous AlphaZero.

Q-Functions and Q-Learning

In the explanations that follow, there is always the implicit notion of a Markov-Decision process (MDP): it consists of a finite state space S\mathcal{S}, a finite action space A\mathcal{A}, a reward space RRR \subseteq \mathbb{R}, a discount factor γ\gamma and transition dynamics p(s,rs,a)p(s', r \mid s, a) that defines the probabilities to arrive in the next states with a certain reward, given the current state and action.

The agent’s goal is to maximize the expected return GG, which is the cumulative discounted reward. This can be modeled by QQ-functions, which represents the expected return for each state action pair Q(s,a)=E[GS=s,A=a]=E[R1+γR2+γ2R3+S=s,A=a],Q(s,a) = E\left[G \mid S = s, A = a \right] = E[R_1 + \gamma R_2 + \gamma^2R_3 + \dots \mid S = s, A = a], where the rewards are stochastically determined by the actions according to the agent’s policy (i.e. a distribution over actions π(as)\pi(a \mid s) for each state sSs \in \mathcal{S}) and the environment dynamics p(s,rs,a)p(s', r \mid s, a). In particular, the QQ-function provides the information on which action leads to the highest value, given a state, when following the given behaviour afterwards.

Q-learning is the process of finding the QQ-function of the optimal policy while following a behaviour policy, e.g. ϵ\epsilon-greedy. This can be done either in a tabular fashion or using function approximation:

Tabular Q-Learning

In tabular Q-learning, we use the following update rule:

Q(s,a)Q(s,a)+α(r+γmaxaQ(s,a)Q(s,a)).Q(s, a) \leftarrow Q(s, a) + \alpha \cdot \left(r + \gamma \max_{a'} Q(s', a') - Q(s,a) \right).

Here, ss' is the next state and α\alpha is a hyperparameter, namely the learning rate. Under the assumption that each state-action pair (s,a)(s,a) is visited infinitely often, this algorithm always converges to the QQ-function of the optimal policy [2].

Note that with growing dimension of the state space the number of possible states grows exponentially. This is also called the curse of dimensionality since it makes tabular QQ-learning and similar tabular methods intractable in high-dimensional spaces. Therefore, we need ways to approximate this process.

Q-Learning with Function Approximation

In order to model these more complex scenarios, we model the Q-function as a parametrised differentiable function Q(s,a;θ)Q(s, a; \theta) that takes in the state and action and, depending on the parameter values, outputs a specific value. In practice, this is often modelled as a function Q(s;θ)Q(s; \theta) that only takes in the state and outputs a whole array of QQ-values, one for each action. For this blog post, you can assume that Q(s;θ)Q(s; \theta) is a neural network with θ\theta as its weights. Then, what is learned are the parameters θ\theta, of which there are fewer than there are states in the state space. The update rule of semi-gradient Q-learning is then the following:

Δθ(r+γmaxaQ(s,a;θ)Q(s,a;θ))θQ(s,a;θ)(1)\Delta\theta \propto \left(r + \gamma \max_{a'} Q(s', a'; \theta) - Q(s, a; \theta)\right) \nabla_{\theta} Q(s, a; \theta) \tag{1}

where ss is your last state, aa is the action you chose in that state, rr is the reward that followed it and ss' is the new state you found yourself in. It is a “semi-gradient method” because Equation (1) is not the full gradient of the loss L=(r+γmaxaQ(s,a;θ)Q(s,a;θ))2.L = \left(r + \gamma \max_{a'} Q(s', a'; \theta) - Q(s, a; \theta)\right)^2. Instead, the target r+γmaxaQ(s,a;θ)r + \gamma \max_{a'} Q(s', a'; \theta) is treated as a constant.

The Deadly Triad

The resulting method now has the following properties:

  1. The method is off-policy. That is, no matter what the behaviour policy is, due to the maximization process in the update-rule, we actually directly learn the state-action values of the optimal policy. This allows the agent to explore all possible actions, while at the same time learning what the optimal actions are.
  2. It is a bootstrapping method. That means, instead of updating its Q-value with an actual outcome of the behaviour, the agent uses an estimate Q(s,a;θ)Q(s', a'; \theta) for the update which is itself not perfect and might be biased.
  3. The method uses function approximation as explained before.

The first two properties were already present in tabular QQ-learning, but together with the added function approximation it is called the “deadly triad” since it can lead to divergence of the algorithm1.
In the following section, we explain the tricks that [1] introduced to tackle the deadly triad and other convergence problems that may arise in Deep RL. It is largely an open research question how large the influence of the deadly triad is on divergence problems in Deep RL, but specifically the fixed target network seems targeted for precisely that, as described in [4]. Other problems come from the nature of RL itself, with its highly non-i.i.d. data.

DQN and its Tricks

In principle, the method is just usual semi-gradient QQ-learning with deep neural networks as function approximators. But the authors employ two important tricks:

1. Experience Replay

This describes the process of storing transitions (st,at,rt,st+1)(s_t, a_t, r_t, s_{t+1}) in a memory DD from which minibatches are later sampled during training.

That process has several advantages:

  • It breaks correlations, so that the data is more i.i.d. This reduces variance of the updates and increases stability, since correlated data might lead to too large steps in one direction.
  • One has gains in efficiency due to re-used data. Note that QQ-learning is an off-policy method, and so using data from the past, when the behaviour policy was still quite different, does not lead to problems.

2. Fixed Target Network

Recall that the update in semi-gradient Q-learning is given by Equation (1), where (s,a,r,s)(s, a, r, s') is a saved transition and θ\theta is the current parameter vector.

There can be the following problem with this framework. First, some notation: Denote the target by T(θ)=r+γmaxaQ(s,a;θ)T(\theta) = r + \gamma \max_{a'} Q(s', a'; \theta) and imagine it is larger by 11 compared to Q(s,a;θ)Q(s, a; \theta). Then we obtain ΔθθQ(s,a;θ)\Delta \theta \propto \nabla_{\theta} Q(s, a; \theta) and move in the direction of increasing Q(s,a;θ)Q(s, a; \theta). But QQ is a function approximator, so this is not the only value that changes and similar state-action pairs will change their value as well. Now, ss' and aa' occur only one time-step after ss and aa, so they may be perceived as very similar when processed by the QQ-network. Consequently, Q(s,a;θ)Q(s', a'; \theta) may increase as much as Q(s,a;θ)Q(s, a; \theta). The result: T(θnew)T(\theta^{\text{new}}) may be one larger than Q(s,a;θnew)Q(s, a; \theta^{\text{new}}) again!

I guess you already see the problem: assuming we would run this indefinitely, the Q-value could explode. This happens due to the off-policy nature of the algorithm which does not ensure that Q(s,a;θ)Q(s', a'; \theta) gets the relevant feedback later on which would make it smaller again.

For this problem, it may help to fix the target network, which was proposed in [1] for the first time. In that framework, you have parameters θ\theta which you update constantly, and parameters θ\theta^{-} which you hold constant for CC timesteps, until you update them to θ\theta and hold them constant again. This is claimed to prevent the spiraling that we describe here.

The Experiment

Aim of the Experiments

The experiments we run aim to visualize the impact that the tricks of DQN have. Note that in [1], the authors find that each of the two tricks, experience replay and a fixed target network, have their own contribution to the success of the agent and that their contribution amplifies when they are combined. We are interested in whether we can confirm these results in a simpler environment and highlighting the individual contributions of the effects.

The self-written source code of the experiments can be found on GitHub2, where we reference to others if we were inspired by their work.

The Environment

The desiderata for our environment were the following:

  • It is simple enough to allow easy experimentation.
  • It is complex and difficult enough so that DQN without experience replay and a fixed target network is not able to solve it.

With these criteria in mind, we will see if the tricks proposed in DQN make it solvable.

We qualitatively reviewed the performance of our model trained on all classic control environments of OpenAI Gym3. Performance is measured as the (negative) episode duration (sign dependant on the whether the agent is tasked to have long or short episodes), and plotted over the training period. We found that the Acrobot-v1 and MountainCar-v0 environments would require further modifications to DQN to be solvable, i.e. even the tricks were not able to lead to convergence. However, the Cartpole-v1 environment displayed exactly the required properties: it diverged when using standard semi-gradient Q-learning with function approximation, but converged when adding experience replay and a target network. In this environment the return is the total number of steps that the pole stays upright, with the upper limit of the number of episodes being 500.

Methods

We have trained the network in the following four versions:

  1. vanilla semi-gradient Q-learning with function approximation.
  2. the same as (1) and including experience replay.
  3. the same as (1) and including a fixed target network which is updated every cCc \in C steps. We experiment with different values of CC in the set {1,50,100,200,500}\{1, 50, 100, 200, 500\}.
  4. a combination of (2) and (3). This is the full training process proposed in [1].

Each variant uses the same simple neural network implemented in PyTorch:

class QNetwork(nn.Module):

    def __init__(self, num_s, num_a, num_hidden=128):
        nn.Module.__init__(self)
        self.l1 = nn.Linear(num_s, num_hidden)
        self.l2 = nn.Linear(num_hidden, num_a)

    def forward(self, x):
        x = F.relu(self.l1(x))
        x = self.l2(x)
        return x

All variants use the same static set of hyperparameters listed in the table below, where we also explain the reasoning behind their choice.

Hyperparameter Value Rationale
Number of episodes 100100 Methods that proved convergence properties converge after around 50 episodes.
Batch size 6464 Standard ”exponent of 2” value with no particular meaning.
Discount Factor 0.80.8 Hand-picked during experimentation and implementation process.
Learning Rate 10310^{-3} Hand-picked during experimentation and implementation process.
Memory Capacity 10.00010.000 Hand-picked during experimentation and implementation process
Replay Start Size Batch Size After 6464 state transitions, we begin training, since then the memory contains enough transitions to fill a batch.
Seed 0100-10 Set of different seeds used to ensure reproducibility and to get uncorrelated results.
ϵstart\epsilon_{\text{start}} 1 At the beginning we play a maximal exploration strategy since the policy did not find good behaviour yet.
ϵend\epsilon_{\text{end}} 0.050.05 We don’t act greedily even during validation, so that the agent cannot overfit on the training experience
ϵsteps\epsilon_{\text{steps}} 10001000 Within 10001000 updates, ϵ\epsilon is linearly annealed to 0.050.05. Hand picked during implementation as it gave fast convergence.
Optimizer ADAM (default parameters) State of the art optimizer suitable for most applications.
NN architecture Input dim: number of states, i.e. 4; Hidden dim: 128 followed by ReLU; Output dim: number of actions, i.e. 2 Hand-picked based on problem and input complexity.

The Implementation

We have utilized the code obtained during Lab sessions of the course Reinforcement Learning at University of Amsterdam as the skeleton of our code, and added a flag to enable/disable the experience replay trick, and added an integer input to define for how many steps the target network would be fixed (1 meaning it is updated each time i.e. it is not fixed). All the environments used are from the OpenAI Gym library. For the implementation we use several open-source standard machine learning python packages (for details see the source code). The experiments are run on a regular laptop with Intel i5-7200U CPU and 8GB of RAM on which a single run of 100 episodes takes about 30 seconds. This means that the results we obtained here can easily be checked on your computer in a few minutes.

Results

For assessing the performance of our agent, we look both at the return and at so-called soft divergence. Note that with return, we always mean the undiscounted return, even if the agent discounts, as in our case, with γ=0.8\gamma = 0.8. That is, we treat γ\gamma not as part of the objective, but as a hyperparameter. We will explain soft divergence in the corresponding subsection.

Return

We will present the results of the experiments with plots in which the x-axis represents the number of the episodes and the y-axis represents the return obtained during validation. This means that every 5 episodes we take the trained model, fix ϵ\epsilon to 0.05 and evaluate the performance of this model, without training it during this process.

Each curve belongs to one variant of the algorithm. For each variant, we train the agent from scratch 10 times with different seeds and create the line by averaging the returns. The shaded area around each curve is the 95%95\% confidence interval (i.e. it represents μ±2σ\mu \pm 2\sigma).

yoni fig 1

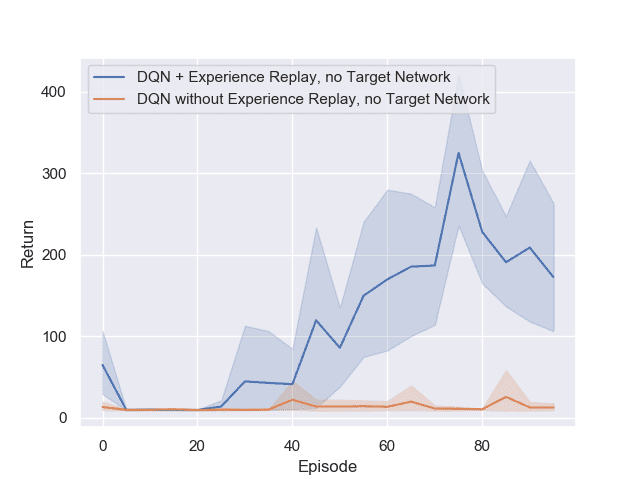

Fig 1: Comparison between DQN with and without experience replay

Figure 1 presents the comparison between the models with and without experience replay. In both cases, we did not use the fixed target network. The picture clearly displays the difference in quality of the two different methods showing that experience replay is a very important factor of convergence in this environment. We also ran the method without experience replay for 500 episodes, but still did not see any clearly improving values as seen in Figure 6 in the appendix.

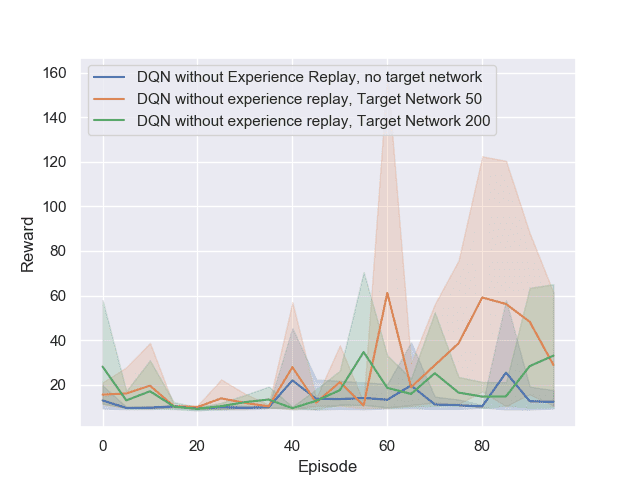

no experience varying target
Fig 2: Comparison between DQN without experience replay for different rates of update of the target network.

In Figure 2 we display the effect of the target network with different update rates on the obtained returns while turning experience replay off. We observe that the version with an update rate of 5050 is often in the lead, however, we do not see an obvious statistical effect of the target network alone. To keep the graphs uncluttered, we do not show the values of 100 and 500 which perform roughly equal to the 50 value.

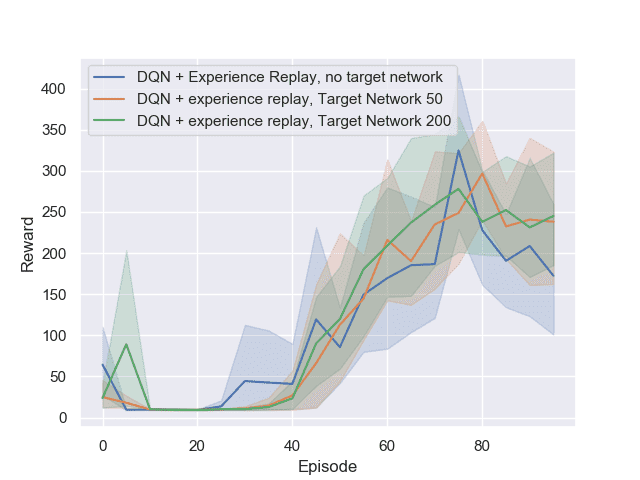

experience varying target
Fig 3: Comparison between DQN with experience replay for different rates of update of the target network. replay

In Figure 3 we illustrate the effect of the combination of both tricks. In the case with experience replay, over large parts of the training process the version with an update rate of 200200 steps is leading, although there can not be any statistical significance inferred in comparison to the update rate of 5050 and 11 (no target network).

Finally, in Figures 1 and [3], we observe that the average episode duration decreases after 75 episodes. To investigate if this is a systematic or purely random effect, we trained the model for 300 episodes which can be seen in Figure 7 in the appendix. In both settings the performance seems to decrease slightly after 100 episodes. To be on the safe side, we therefore suggest to periodically take snapshots of the weights and in the end use the model with the highest average episode duration.

Soft Divergence

Now we look at assessing the so-called soft divergence. Soft divergence was for the first time studied in 4 as follows:

Let γ\gamma be our discount rate, in our case 0.80.8. Since our rewards are all in the interval [1,1][-1, 1] (actually, it is always 11 until the agent loses or the episode is over), there is a bound on the maximally achievable true Q-values. We can see this by bounding the discounted return:

G=n=0γnRnn=0γn=11γ.G = \sum_{n = 0}^{\infty} \gamma^n R_n \leq \sum_{n = 0}^{\infty} \gamma^n = \frac{1}{1 - \gamma}.

In our case, this bound is 110.8=5\frac{1}{1 - 0.8} = 5. Now, soft divergence is the phenomenon of learned Q-values that exceed this bound. This is connected to the deadly triad: off-policy learning with bootstrapping and function approximation can lead to a situation in which the Q-values chase the targets, which themselves can get bigger and bigger until they exceed realistic bounds.

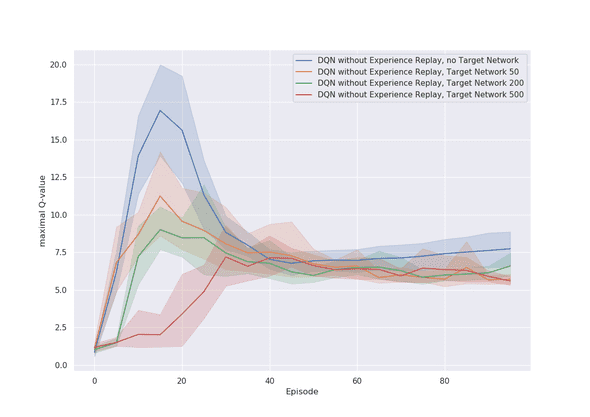

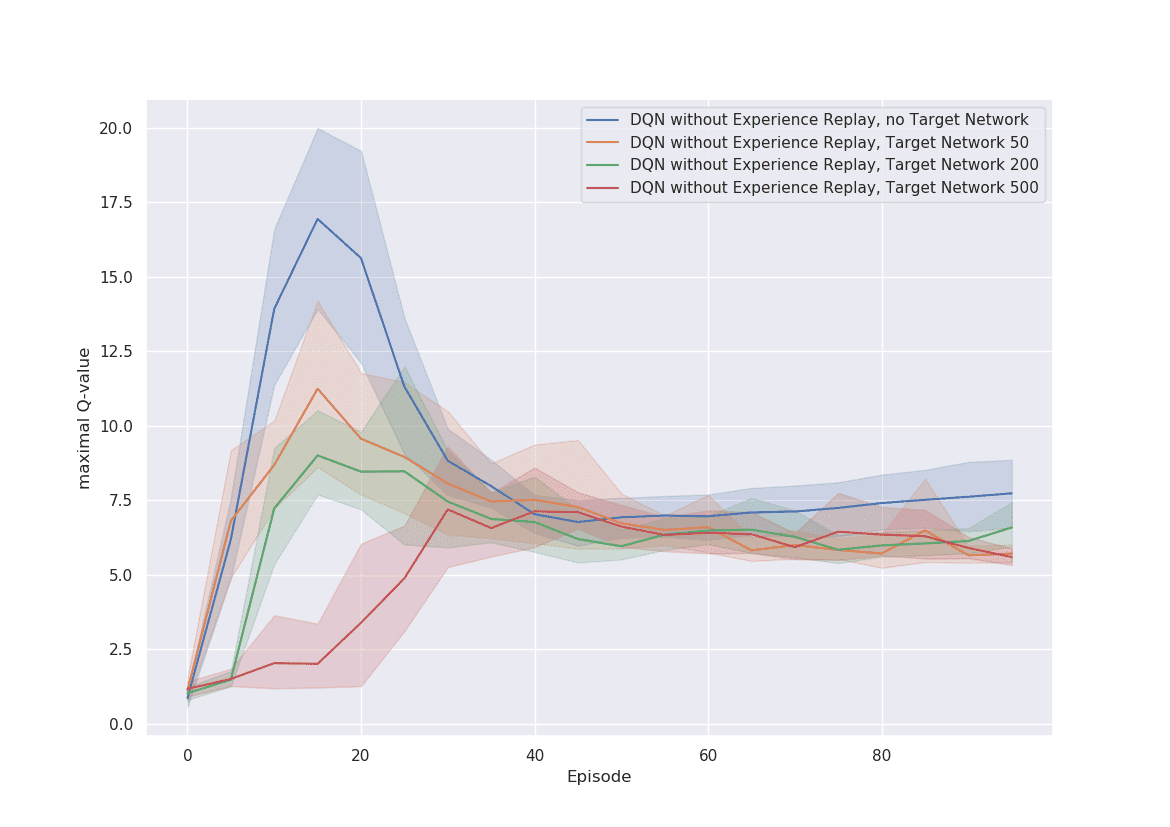

q values without exp
Fig 4: Max Q-Values within evaluation episodes with experience replay network. replay

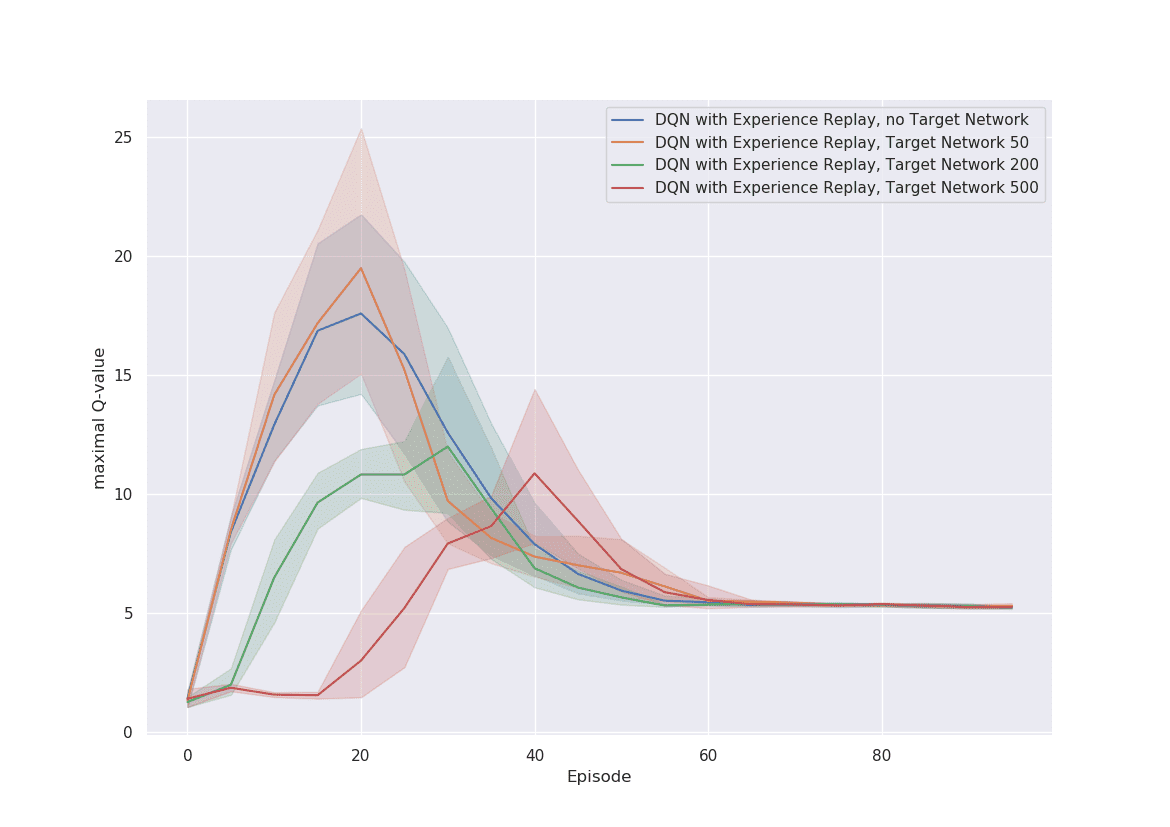

q values with exp
Fig 5: Max Q-Values within evaluation episodes with experience replay. replay

In order to assess the presence of soft divergence, we measure the maximal Q-values that appear within evaluation episodes. In Figure 4, you can find this for the case without experience replay, and in Figure 5 for the case with experience replay.

First of all, we can see that if we use experience replay, the maximal Q-value converges precisely to 55. This is expected, since we already know that an agent using experience replay achieves high return, and so if the Q-value measures the return correctly, it should output something close to the optimal value, which is 55.

However, the version without experience replay actually shows soft divergence, with Q-values being consistently too large in the end of training with values ranging between 55 and 88. Additionally, since we already know that the agent performs very bad, we would actually expect Q-values lower than 55. Now we get an explanation for why the agent is not able to perform properly: the measurements of the Q-values are partly too high during the entire training process, and therefore not accurate, and cannot guide the agent to the actions with the best behaviour.

Another interesting phenomenon can be observed by looking at the differences between the different target network update rates. In both plots we see that, in the beginning of the training process, the Q-values get considerably larger than 55, ranging up to 2525. That is, all versions of the algorithm show soft divergence in the first 50 episodes, with a peak after 2020 episodes. One explanation might be the maximization bias which is present in Q-learning. Maximization bias is a phenomenon which happens when the algorithm overestimates the Q-values as a consequence of the max\max arguments in the update rule. In practice, this bias has been studied and can be solved for example with double Q-learning explained in [5]. However, since we did not include experiments using double Q-learning, we cannot assess the validity of this explanation.

A second and complementary explanation for this might be the following: in the beginning of training, the learned representations of the Q-network are very bad and might not be successful in distinguishing between different state-action pairs. If that happens, then the increase of one Q-value might just increase the Q-values of all other states in the same way, which creates the already explained phenomenon that Q-values can become unbounded. This would also explain why the problem is less severe when using the fixed target network, and even less severe if the updates of the parameters happen less often.

Conclusion

In this blog post we have analyzed what effect the tricks experience replay and a fixed target network have on the convergence of the DQN algorithm. Our experiments have shown that, by itself, the DQN algorithm without experience replay and fixed target network fails to converge.

Furthermore, we observe that experience replay has a significant impact on the objective, i.e. return, whereas the fixed target network showed almost no effect on that. This is different from what we expected, as we initially expected that only the addition of both tricks would allow the agent to perform optimally.

For the large effect of the experience replay on the return, we believe this is because in a physical system like the cart pole environment subsequent state observations are deterministically dependent. This is the strongest form of correlation and might lead to too large steps in one direction. This can be specifically crucial, because a fast move in one direction of the cart can lead to a change of orientation of the pole in the other direction and to the end of the episode.

The small effect of the fixed target network on the return is contradicted, however, by analyzing its effect on soft divergence. We saw that the fixed target network actually plays an essential role in mitigating the initially very high Q-values seen in all variants of the algorithm. This does not itself change the return of the agent after convergence, since in all cases, the algorithm is able to correct for the mistake of vastly too large initial Q-values. Still, these results hint that in more complex environments, we would also see an influence of the fixed target network on the return achieved by agents as updating the target network more rarely can help fight the soft divergence.\

We conclude that generally DQN contains strong and theoretically sound ideas, and we saw that both tricks can, in different ways, help avoiding divergence. However, to train it successfully and to use the utility of the tricks fruitfully, still requires practice and effortful tuning.

Appendix

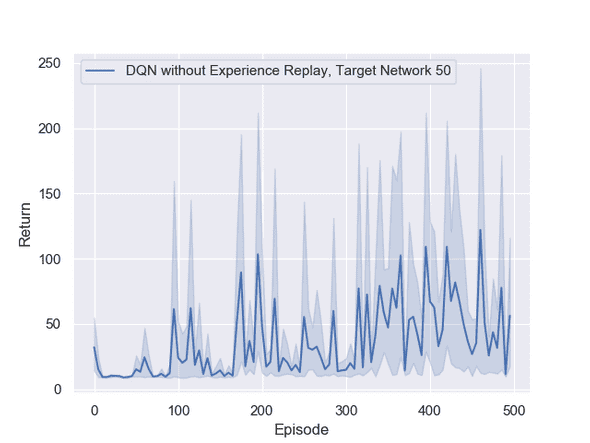

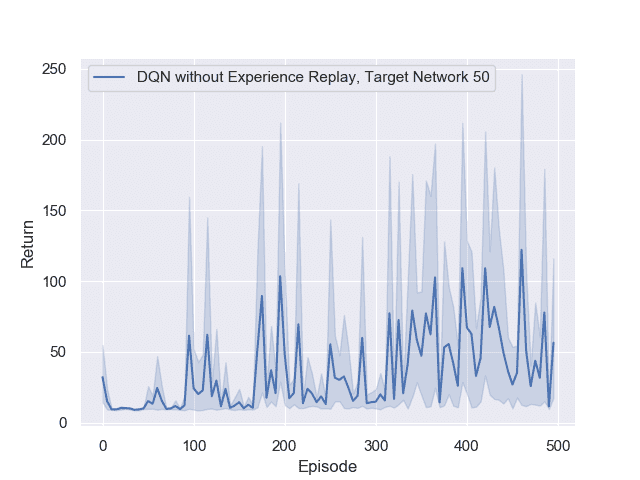

DQN without Experience Replay after 500 Episodes

Results
This result shows that even after $500$ episodes, the version without experience replay fails to converge in the cartpole environment. There is some slight upward trend that is nevertheless not very stable.

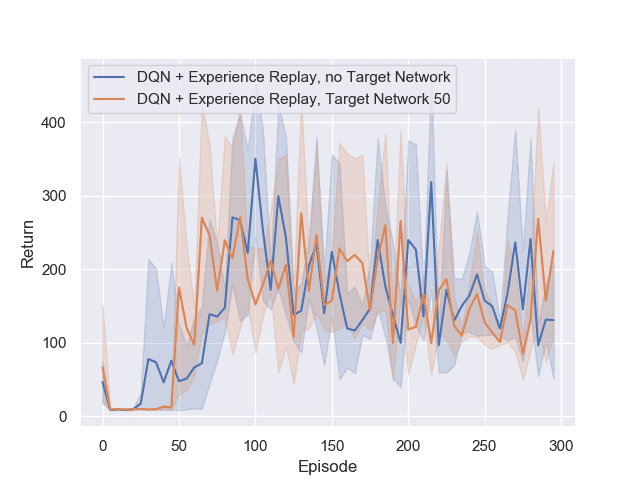

DQN with Experience Replay after 300 Episodes

Results
This result shows that DQN with experience replay and with a fixed target network for 50 steps tends to reduce performance when training longer. Note that the shaded area here is the 95% confidence interval over 5 runs from scratch, less than the 10 runs as in the other experiments.

Referenes

[1] Human-level control through deep reinforcement learning
[2] Playing Atari with Deep Reinforcement Learning]
[3] Sutton & Barto: Reinforcement Learning Book
[4] Deep Reinforcement Learning and the Deadly Triad
[5] Double Q-learning


  1. It is out of the scope of this blog post to go into the details as to why the deadly triad can lead to divergence. We recommend the interested reader to read chapter 1111 of [@sutton2018reinforcement].

  2. https://github.com/YoniSchirris/rl-lab3

  3. https://gym.openai.com/
